Lecture 7: Convolutional Neural Networks

Lecture 7: Convolutional Neural Networks#

Handling image data

Joaquin Vanschoren, Eindhoven University of Technology

Overview#

Image convolution
Convolutional neural networks
Data augmentation

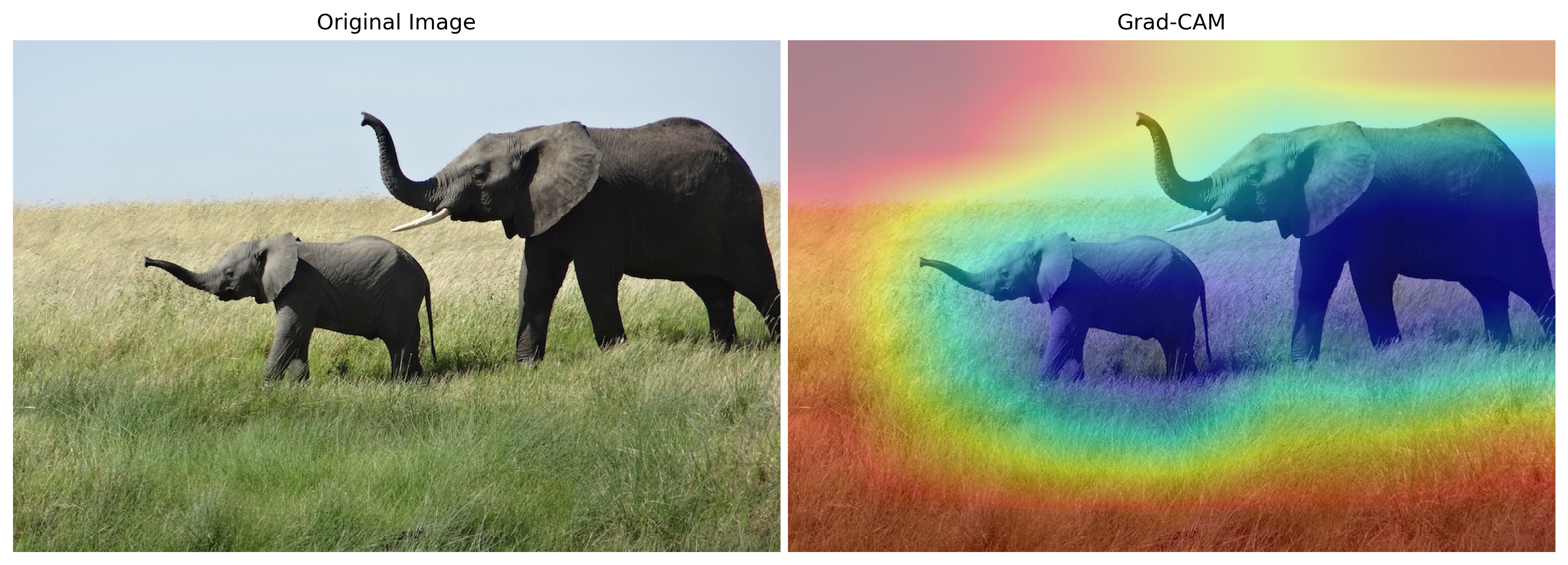

Model interpretation
Using pre-trained networks (transfer learning)

%%javascript
IPython.OutputArea.prototype._should_scroll = function(lines) {
    return false;
}

Convolutions#

Operation that transforms an image by sliding a smaller image (called a filter or kernel ) over the image and multiplying the pixel values
- Slide an \(n\) x \(n\) filter over \(n\) x \(n\) patches of the original image
- Every pixel is replaced by the sum of the element-wise products of the values of the image patch around that pixel and the kernel

# kernel and image_patch are n x n matrices
pixel_out = np.sum(kernel * image_patch)

Show code cell source Hide code cell source

from __future__ import print_function
import ipywidgets as widgets
from ipywidgets import interact, interact_manual, Dropdown
from skimage import color


# Visualize convolution. See https://tonysyu.github.io/
def iter_pixels(image):
    """ Yield pixel position (row, column) and pixel intensity. """
    height, width = image.shape[:2]
    for i in range(height):
        for j in range(width):
            yield (i, j), image[i, j]

# Visualize result
def imshow_pair(image_pair, titles=('', ''), figsize=(8, 4), **kwargs):
    fig, axes = plt.subplots(ncols=2, figsize=figsize)
    for ax, img, label in zip(axes.ravel(), image_pair, titles):
        ax.imshow(img, **kwargs)
        ax.set_title(label, fontdict={'fontsize':32*fig_scale})
        ax.set_xticks([])
        ax.set_yticks([])

# Visualize result
def imshow_triple(axes, image_pair, titles=('', '', ''), figsize=(8, 4), **kwargs):
    for ax, img, label in zip(axes, image_pair, titles):
        ax.imshow(img, **kwargs)
        ax.set_title(label, fontdict={'fontsize':10*fig_scale})
        ax.set_xticks([])
        ax.set_yticks([])

# Zero-padding
def padding_for_kernel(kernel):
    """ Return the amount of padding needed for each side of an image.

    For example, if the returned result is [1, 2], then this means an
    image should be padded with 1 extra row on top and bottom, and 2
    extra columns on the left and right.
    """
    # Slice to ignore RGB channels if they exist.
    image_shape = kernel.shape[:2]
    # We only handle kernels with odd dimensions so make sure that's true.
    # (The "center" pixel of an even number of pixels is arbitrary.)
    assert all((size % 2) == 1 for size in image_shape)
    return [(size - 1) // 2 for size in image_shape]
def add_padding(image, kernel):
    h_pad, w_pad = padding_for_kernel(kernel)
    return np.pad(image, ((h_pad, h_pad), (w_pad, w_pad)),
                  mode='constant', constant_values=0)
def remove_padding(image, kernel):
    inner_region = []  # A 2D slice for grabbing the inner image region
    for pad in padding_for_kernel(kernel):
        slice_i = np.s_[:] if pad == 0 else np.s_[pad: -pad]
        inner_region.append(slice_i)
    return image # [inner_region] # Broken in numpy 1.24, doesn't seem necessary

# Slice windows
def window_slice(center, kernel):
    r, c = center
    r_pad, c_pad = padding_for_kernel(kernel)
    # Slicing is (inclusive, exclusive) so add 1 to the stop value
    return np.s_[r-r_pad:r+r_pad+1, c-c_pad:c+c_pad+1]


# Apply convolution kernel to image patch
def apply_kernel(center, kernel, original_image):
    image_patch = original_image[window_slice(center, kernel)]
    # An element-wise multiplication followed by the sum
    return np.sum(kernel * image_patch)

# Move kernel over the image
def iter_kernel_labels(image, kernel):
    original_image = image
    image = add_padding(original_image, kernel)
    i_pad, j_pad = padding_for_kernel(kernel)

    for (i, j), pixel in iter_pixels(original_image):
        # Shift the center of the kernel to ignore padded border.
        i += i_pad
        j += j_pad
        mask = np.zeros(image.shape, dtype=int)  # Background = 0
        mask[window_slice((i, j), kernel)] = kernel   # Kernel = 1
        #mask[i, j] = 2                           # Kernel-center = 2
        yield (i, j), mask

# Visualize kernel as it moves over the image
def visualize_kernel(kernel_labels, image):
    return kernel_labels + image #color.label2rgb(kernel_labels, image, bg_label=0)

def convolution_demo(image, kernels, **kwargs):
    # Dropdown for selecting kernels
    kernel_names = list(kernels.keys())
    kernel_selector = Dropdown(options=kernel_names, description='Kernel:')

    def update_convolution(kernel_name):
        kernel = kernels[kernel_name]  # Get the selected kernel
        gen_kernel_labels = iter_kernel_labels(image, kernel)

        image_cache = []
        image_padded = add_padding(image, kernel)

        def convolution_step(i_step=0):
            while i_step >= len(image_cache):
                filtered_prev = image_padded if i_step == 0 else image_cache[-1][1]
                filtered = filtered_prev.copy()

                center, kernel_labels = next(gen_kernel_labels)
                filtered[center] = apply_kernel(center, kernel, image_padded)
                kernel_overlay = visualize_kernel(kernel_labels, image_padded)

                image_cache.append((kernel_overlay, filtered))

            image_pair = [remove_padding(each, kernel) for each in image_cache[i_step]]
            imshow_pair(image_pair, **kwargs)
            plt.show()

        interact(convolution_step, i_step=(0, image.size - 1, 1))

    interact(update_convolution, kernel_name=kernel_selector);

# Full process
def convolution_full(ax, image, kernel, **kwargs):
    # Initialize generator since we're only ever going to iterate over
    # a pixel once. The cached result is used, if we step back.
    gen_kernel_labels = iter_kernel_labels(image, kernel)

    image_cache = []
    image_padded = add_padding(image, kernel)
    # Plot original image and kernel-overlay next to filtered image.

    for i_step in range(image.size-1):

        # For the first step (`i_step == 0`), the original image is the
        # filtered image; after that we look in the cache, which stores
        # (`kernel_overlay`, `filtered`).
        filtered_prev = image_padded if i_step == 0 else image_cache[-1][1]
        # We don't want to overwrite the previously filtered image:
        filtered = filtered_prev.copy()

        # Get the labels used to visualize the kernel
        center, kernel_labels = next(gen_kernel_labels)
        # Modify the pixel value at the kernel center
        filtered[center] = apply_kernel(center, kernel, image_padded)
        # Take the original image and overlay our kernel visualization
        kernel_overlay = visualize_kernel(kernel_labels, image_padded)
        # Save images for reuse.
        image_cache.append((kernel_overlay, filtered))

    # Remove padding we added to deal with boundary conditions
    # (Loop since each step has 2 images)
    image_triple = [remove_padding(each, kernel)
                  for each in image_cache[i_step]]
    image_triple.insert(1,kernel)
    imshow_triple(ax, image_triple, **kwargs)

Different kernels can detect different types of patterns in the image

Demonstration on Fashion-MNIST#

../_images/650b1bb80a2a1e51df84109f1a1cac36f2085a2243ab3d2e0b7c3035805d218f.png

Demonstration

Image convolution in practice#

How do we know which filters are best for a given image?
Families of kernels (or filter banks ) can be run on every image
- Gabor, Sobel, Haar Wavelets,…
Gabor filters: Wave patterns generated by changing:
- Frequency: narrow or wide ondulations
- Theta: angle (direction) of the wave
- Sigma: resolution (size of the filter)

Demonstration

../_images/ad4e97034f1151ae4de531790b8b326cba43635c82686f9f55132a5239026d90.png

Demonstration on the Fashion-MNIST data

Filter banks#

Different filters detect different edges, shapes,…
Not all seem useful

../_images/a4940096f640d5b30983e7b9df214fc89e4641aff3a191872d4f9f758098f457.png

Convolutional neural nets#

Finding relationships between individual pixels and the correct class is hard
Simplify the problem by decomposing it into smaller problems
First, discover ‘local’ patterns (edges, lines, endpoints)
Representing such local patterns as features makes it easier to learn from them
- Deeper layers will do that for us
We could use convolutions, but how to choose the filters?

Convolutional Neural Networks (ConvNets)#

Instead of manually designing the filters, we can also learn them based on data
- Choose filter sizes (manually), initialize with small random weights
Forward pass: Convolutional layer slides the filter over the input, generates the output
Backward pass: Update the filter weights according to the loss gradients
Illustration for 1 filter:

Convolutional layers: Feature maps#

One filter is not sufficient to detect all relevant patterns in an image
A convolutional layer applies and learns \(d\) filters in parallel
Slide \(d\) filters across the input image (in parallel) -> a (1x1xd) output per patch
Reassemble into a feature map with \(d\) ‘channels’, a (width x height x d) tensor.

Border effects (zero padding)#

Consider a 5x5 image and a 3x3 filter: there are only 9 possible locations, hence the output is a 3x3 feature map
If we want to maintain the image size, we use zero-padding, adding 0’s all around the input tensor.

Undersampling (striding)#

Sometimes, we want to downsample a high-resolution image
- Faster processing, less noisy (hence less overfitting)
- Forces the model to summarize information in (smaller) feature maps
One approach is to skip values during the convolution
- Distance between 2 windows: stride length
Example with stride length 2 (without padding):

Max-pooling#

Another approach to shrink the input tensors is max-pooling :
- Run a filter with a fixed stride length over the image
  - Usually 2x2 filters and stride lenght 2
- The filter simply returns the max (or avg ) of all values
Agressively reduces the number of weights (less overfitting)

Receptive field#

Receptive field: how much each output neuron ‘sees’ of the input image
Translation invariance: shifting the input does not affect the output
- Large receptive field -> neurons can ‘see’ patterns anywhere in the input
\(nxn\) convolutions only increase the receptive field by \(n+2\) each layer
Maxpooling doubles the receptive field without deepening the network

import matplotlib.patches as patches

def draw_grid(ax, size, offset):
    """Draws a grid without text labels"""
    for i in range(size):
        for j in range(size):
            ax.add_patch(patches.Rectangle((j + offset[0], -i + offset[1]), 1, 1,
                                           fill=False, edgecolor='gray', linewidth=1))

def highlight_region(ax, positions, offset, color, alpha=0.3):
    """Highlights a specific region in the grid"""
    for x, y in positions:
        ax.add_patch(patches.Rectangle((x + offset[0], -y + offset[1]), 1, 1, fill=True, color=color, alpha=alpha))

def draw_connection_hull(ax, points, color, alpha):
    """Draws a polygon representing the hull of connection lines"""
    ax.add_patch(patches.Polygon(points, closed=True, facecolor=color, alpha=alpha, edgecolor=None))

def add_titles(ax, option):
    """Adds titles above each matrix"""
    titles = ["Input", option, "Output_1", "Kernel_2", "Output_2"]
    positions = [(0, 1.5), (9, 1.5), (15, 1.5), (20, 1.5), (24, 1.5)]

    for title, (x, y) in zip(titles, positions):
        ax.text(x, y, title, fontsize=12, fontweight='bold', ha='left')

layer_options = ['3x3 Kernel', '3x3 Kernel, Stride 2', '5x5 Kernel', 'MaxPool 2x2']
layer_options2 = ['3x3 Kernel', '3x3 Kernel, Dilation 2']

@interact
def visualize_receptive_field(option=layer_options):
    fig, ax = plt.subplots(figsize=(18, 6))
    ax.set_xlim(-2, 26)
    ax.set_ylim(-9, 2)
    ax.axis('off')
    add_titles(ax, option)
    kernel_size = 0

    grids = [(8, (0, 0)), (4, (15, 0)), (3, (20, 0)), (2, (24, 0))]

    single_output_rf = [(0, 0)]
    for size, offset in grids:
        draw_grid(ax, size, offset)

    if option == 'MaxPool 2x2':
        full_input_rf = [(x, y) for x in range(6) for y in range(6)]
        highlight_region(ax, full_input_rf, (0, 0), 'green', alpha=0.3)
    else:
        kernel_size = 3 if option.startswith('3x3 Kernel') else 5
        draw_grid(ax, kernel_size, (9, 0))

        input_highlight_size = kernel_size + 2
        if option == '3x3 Kernel, Stride 2' or option == '3x3 Kernel, Dilation 2':
            input_highlight_size = kernel_size + 4

        full_input_rf = [(x, y) for x in range(input_highlight_size) for y in range(input_highlight_size)]
        kernel_1 = [(x, y) for x in range(kernel_size) for y in range(kernel_size)]
        kernel_rf = kernel_1
        if option == '3x3 Kernel, Dilation 2':
            kernel_rf = [(x*2, y*2) for x in range(kernel_size) for y in range(kernel_size)]

        highlight_region(ax, full_input_rf, (0, 0), 'green')
        highlight_region(ax, kernel_rf, (0, 0), 'blue')
        highlight_region(ax, kernel_1, (9, 0), 'blue')
        highlight_region(ax, single_output_rf, (15, 0), 'blue')

    kernel2_rf = [(x, y) for x in range(3) for y in range(3)]

    highlight_region(ax, kernel2_rf, (15, 0), 'green')
    highlight_region(ax, kernel2_rf, (20, 0), 'green')
    highlight_region(ax, single_output_rf, (24, 0), 'green')

    connection_hulls = [
        ([(23, -2), (23, 1), (24, 1), (24, 0)], 'green', 0.1),
        ([(18, -2), (18, 1), (20, 1), (20, -2)], 'green', 0.1)
    ]

    kernel_fp = kernel_size * 2 - 1 if option == '3x3 Kernel, Dilation 2' else kernel_size

    if option != 'MaxPool 2x2':
        connection_hulls.extend([
            ([(kernel_fp, 1-kernel_fp), (kernel_fp, 1), (9, 1), (9, 1-kernel_size)], 'blue', 0.1),
            ([(9+kernel_size, 1-kernel_size), (9+kernel_size, 1), (15, 1), (15, 0)], 'blue', 0.1)
        ])
    else:
        connection_hulls.extend([
            ([(6, -5), (6, 1), (15, 1), (15, -2)], 'green', 0.1),
        ])

    for points, color, alpha in connection_hulls:
        draw_connection_hull(ax, points, color, alpha)

    plt.show()

if not interactive:
    for option in layer_options[0::3]:
        visualize_receptive_field(option=option)

Dilated convolutions#

Downsample by introducing ‘gaps’ between filter elements by spacing them out
Increases the receptive field exponentially
Doesn’t need extra parameters or computation (unlike larger filters)
Retains feature map size (unlike pooling)

@interact
def visualize_receptive_field2(option=layer_options2):
    visualize_receptive_field(option)

if not interactive:
    visualize_receptive_field(option=layer_options2[1])

Convolutional nets in practice#

Use multiple convolutional layers to learn patterns at different levels of abstraction
- Find local patterns first (e.g. edges), then patterns across those patterns
Use MaxPooling layers to reduce resolution, increase translation invariance
Use sufficient filters in the first layer (otherwise information gets lost)
In deeper layers, use increasingly more filters
- Preserve information about the input as resolution descreases
- Avoid decreasing the number of activations (resolution x nr of filters)
For very deep nets, add skip connections to preserve information (and gradients)
- Sums up outputs of earlier layers to those of later layers (with same dimensions)

Example with PyTorch#

Conv2d for 2D convolutional layers
- Grayscale image: 1 in_channels
- 32 filters: 32 out_channels, 3x3 size
- Deeper layers use 64 filters
- ReLU activation, no padding
- MaxPool2d for max-pooling, 2x2

model = nn.Sequential(
    nn.Conv2d(in_channels=1, out_channels=32, kernel_size=3),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=2, stride=2),
    nn.Conv2d(in_channels=32, out_channels=64, kernel_size=3),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=2, stride=2),
    nn.Conv2d(in_channels=64, out_channels=64, kernel_size=3),
    nn.ReLU()
)

import torch
import torch.nn as nn

model = nn.Sequential(
    nn.Conv2d(in_channels=1, out_channels=32, kernel_size=3, padding=0),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=2, stride=2),
    nn.Conv2d(in_channels=32, out_channels=64, kernel_size=3, padding=0),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=2, stride=2),
    nn.Conv2d(in_channels=64, out_channels=64, kernel_size=3, padding=0),
    nn.ReLU()
)

Observe how the input image on 1x28x28 is transformed to a 64x3x3 feature map
- In pytorch, shapes are (batch_size, channels, height, width)
Conv2d parameters = (kernel size^2 × input channels + 1) × output channels
No zero-padding: every output is 2 pixels less in every dimension
After every MaxPooling, resolution halved in every dimension

from torchinfo import summary
summary(model, input_size=(1, 1, 28, 28))

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
Sequential                               [1, 64, 3, 3]             --
├─Conv2d: 1-1                            [1, 32, 26, 26]           320
├─ReLU: 1-2                              [1, 32, 26, 26]           --
├─MaxPool2d: 1-3                         [1, 32, 13, 13]           --
├─Conv2d: 1-4                            [1, 64, 11, 11]           18,496
├─ReLU: 1-5                              [1, 64, 11, 11]           --
├─MaxPool2d: 1-6                         [1, 64, 5, 5]             --
├─Conv2d: 1-7                            [1, 64, 3, 3]             36,928
├─ReLU: 1-8                              [1, 64, 3, 3]             --
==========================================================================================
Total params: 55,744
Trainable params: 55,744
Non-trainable params: 0
Total mult-adds (M): 2.79
==========================================================================================
Input size (MB): 0.00
Forward/backward pass size (MB): 0.24
Params size (MB): 0.22
Estimated Total Size (MB): 0.47
==========================================================================================

To classify the images, we still need a linear and output layer.
We flatten the 3x3x64 feature map to a vector of size 576

model = nn.Sequential(
    ...
    nn.Conv2d(in_channels=64, out_channels=64, kernel_size=3, padding=0),
    nn.ReLU(),
    nn.Flatten(),
    nn.Linear(64 * 3 * 3, 64),
    nn.ReLU(),
    nn.Linear(64, 10)
)

Complete model. Flattening adds a lot of weights!

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
Sequential                               [1, 10]                   --
├─Conv2d: 1-1                            [1, 32, 26, 26]           320
├─ReLU: 1-2                              [1, 32, 26, 26]           --
├─MaxPool2d: 1-3                         [1, 32, 13, 13]           --
├─Conv2d: 1-4                            [1, 64, 11, 11]           18,496
├─ReLU: 1-5                              [1, 64, 11, 11]           --
├─MaxPool2d: 1-6                         [1, 64, 5, 5]             --
├─Conv2d: 1-7                            [1, 64, 3, 3]             36,928
├─ReLU: 1-8                              [1, 64, 3, 3]             --
├─Flatten: 1-9                           [1, 576]                  --
├─Linear: 1-10                           [1, 64]                   36,928
├─ReLU: 1-11                             [1, 64]                   --
├─Linear: 1-12                           [1, 10]                   650
==========================================================================================
Total params: 93,322
Trainable params: 93,322
Non-trainable params: 0
Total mult-adds (M): 2.82
==========================================================================================
Input size (MB): 0.00
Forward/backward pass size (MB): 0.24
Params size (MB): 0.37
Estimated Total Size (MB): 0.62
==========================================================================================

Global Average Pooling (GAP)#

Instead of flattening, we do GAP: returns average of each activation map
We can drop the hidden dense layer: number of outputs > number of classes

model = nn.Sequential(...
    nn.AdaptiveAvgPool2d(1), # Global Average Pooling
    nn.Flatten(),            # Convert (batch, 64, 1, 1) -> (batch, 64)
    nn.Linear(64, 10))       # Output layer for 10 classes

With GlobalAveragePooling: much fewer weights to learn
Use with caution: this destroys the location information learned by the CNN
Not ideal for tasks such as object localization

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
Sequential                               [1, 10]                   --
├─Conv2d: 1-1                            [1, 32, 26, 26]           320
├─ReLU: 1-2                              [1, 32, 26, 26]           --
├─MaxPool2d: 1-3                         [1, 32, 13, 13]           --
├─Conv2d: 1-4                            [1, 64, 11, 11]           18,496
├─ReLU: 1-5                              [1, 64, 11, 11]           --
├─MaxPool2d: 1-6                         [1, 64, 5, 5]             --
├─Conv2d: 1-7                            [1, 64, 3, 3]             36,928
├─ReLU: 1-8                              [1, 64, 3, 3]             --
├─AdaptiveAvgPool2d: 1-9                 [1, 64, 1, 1]             --
├─Flatten: 1-10                          [1, 64]                   --
├─Linear: 1-11                           [1, 10]                   650
==========================================================================================
Total params: 56,394
Trainable params: 56,394
Non-trainable params: 0
Total mult-adds (M): 2.79
==========================================================================================
Input size (MB): 0.00
Forward/backward pass size (MB): 0.24
Params size (MB): 0.23
Estimated Total Size (MB): 0.47
==========================================================================================

Run the model on MNIST dataset

Train and test as usual: 99% accuracy
- Compared to 97,8% accuracy with the dense architecture
- Flatten and GlobalAveragePooling yield similar performance

import pytorch_lightning as pl

# Keeps a history of scores to make plotting easier
class MetricTracker(pl.Callback):
    def __init__(self):
        super().__init__()
        self.history = {
            "train_loss": [],
            "train_acc": [],
            "val_loss": [],
            "val_acc": []
        }
        self.first_validation = True  # Flag to ignore first validation step

    def on_train_epoch_end(self, trainer, pl_module):
        """Collects training metrics at the end of each epoch"""
        train_loss = trainer.callback_metrics.get("train_loss")
        train_acc = trainer.callback_metrics.get("train_acc")

        if train_loss is not None:
            self.history["train_loss"].append(train_loss.cpu().item())
        if train_acc is not None:
            self.history["train_acc"].append(train_acc.cpu().item())

    def on_validation_epoch_end(self, trainer, pl_module):
        """Collects validation metrics at the end of each epoch"""
        if self.first_validation:
            self.first_validation = False  # Skip first validation logging
            return

        val_loss = trainer.callback_metrics.get("val_loss")
        val_acc = trainer.callback_metrics.get("val_acc")

        if val_loss is not None:
            self.history["val_loss"].append(val_loss.cpu().item())
        if val_acc is not None:
            self.history["val_acc"].append(val_acc.cpu().item())

def plot_training(history):
    plt.figure(figsize=(12, 4))  # Increased figure size

    # Plot Loss
    plt.subplot(1, 2, 1)
    plt.plot(history["train_loss"], label="Train Loss", marker='o', lw=2)
    plt.plot(history["val_loss"], label="Validation Loss", marker='o', lw=2)
    plt.xlabel("Epochs", fontsize=14)  # Larger font size
    plt.ylabel("Loss", fontsize=14)
    plt.title("Loss vs. Epochs", fontsize=16, fontweight="bold")
    plt.xticks(fontsize=12)
    plt.yticks(fontsize=12)
    plt.legend(fontsize=12)

    # Plot Accuracy
    plt.subplot(1, 2, 2)
    plt.plot(history["train_acc"], label="Train Accuracy", marker='o', lw=2)
    plt.plot(history["val_acc"], label="Validation Accuracy", marker='o', lw=2)
    plt.xlabel("Epochs", fontsize=14)
    plt.ylabel("Accuracy", fontsize=14)
    plt.title("Accuracy vs. Epochs", fontsize=16, fontweight="bold")
    plt.xticks(fontsize=12)
    plt.yticks(fontsize=12)
    plt.legend(fontsize=12)

    plt.tight_layout()  # Adjust layout for readability
    plt.show()

Show code cell source Hide code cell source

import torch.optim as optim
import torchvision.transforms as transforms
import torchvision.datasets as datasets
from torch.utils.data import DataLoader, random_split
from torchmetrics.functional import accuracy

# Model in Pytorch Lightning
class MNISTModel(pl.LightningModule):
    def __init__(self, learning_rate=0.001):
        super().__init__()
        self.save_hyperparameters()
        self.model = nn.Sequential(
            nn.Conv2d(1, 32, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),
            nn.Conv2d(32, 64, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),
            nn.Conv2d(64, 64, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.AdaptiveAvgPool2d(1),
            nn.Flatten(),
            nn.Linear(64, 10)
        )
        self.loss_fn = nn.CrossEntropyLoss()

    def forward(self, x):
        return self.model(x)

    # Logging of loss and accuracy for later plotting
    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = self.loss_fn(logits, y)
        acc = accuracy(logits, y, task="multiclass", num_classes=10)
        self.log("train_loss", loss, prog_bar=True, on_epoch=True)
        self.log("train_acc", acc, prog_bar=True, on_epoch=True)
        return loss

    def validation_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = self.loss_fn(logits, y)
        acc = accuracy(logits, y, task="multiclass", num_classes=10)
        self.log("val_loss", loss, prog_bar=True, on_epoch=True)
        self.log("val_acc", acc, prog_bar=True, on_epoch=True)
        return loss

    def configure_optimizers(self):
        return optim.Adam(self.parameters(), lr=self.hparams.learning_rate)

# Compute mean and std to normalize the data
# Couldn't find a way to do this automatically in PyTorch :(
# Normalization is not strictly needed, but speeds up convergence
dataset = datasets.MNIST(root=".", train=True, transform=transforms.ToTensor(), download=True)
loader = torch.utils.data.DataLoader(dataset, batch_size=1000, num_workers=4, shuffle=False)
mean = torch.mean(torch.stack([batch[0].mean() for batch in loader]))
std = torch.mean(torch.stack([batch[0].std() for batch in loader]))

# Loading the data. We'll discuss data loaders again soon.
class MNISTDataModule(pl.LightningDataModule):
    def __init__(self, batch_size=64):
        super().__init__()
        self.batch_size = batch_size
        self.transform = transforms.Compose([
            transforms.ToTensor(),
            transforms.Normalize((mean,), (std,))  # Normalize MNIST. Make more general?
        ])

    def prepare_data(self):
        datasets.MNIST(root=".", train=True, download=True)  # Downloads dataset

    def setup(self, stage=None):
        full_train = datasets.MNIST(root=".", train=True, transform=self.transform)
        self.train, self.val = random_split(full_train, [55000, 5000])
        self.test = datasets.MNIST(root=".", train=False, transform=self.transform)

    def train_dataloader(self):
        return DataLoader(self.train, batch_size=self.batch_size, shuffle=True, num_workers=4)

    def val_dataloader(self):
        return DataLoader(self.val, batch_size=self.batch_size, num_workers=4)

    def test_dataloader(self):
        return DataLoader(self.test, batch_size=self.batch_size, num_workers=4)


# Initialize data & model
pl.seed_everything(42)  # Ensure reproducibility
data_module = MNISTDataModule(batch_size=64)
model = MNISTModel(learning_rate=0.001)

# Trainer with logging & checkpointing
accelerator = "cpu"
if torch.backends.mps.is_available():
    accelerator = "mps"
if torch.cuda.is_available():
    accelerator = "gpu"

metric_tracker = MetricTracker()  # Callback to track per-epoch metrics

trainer = pl.Trainer(
    max_epochs=10,  # Train for 10 epochs
    accelerator=accelerator,
    devices="auto",
    log_every_n_steps=10,
    deterministic=True,
    callbacks=[metric_tracker]  # Attach callback to trainer
)

if histories and histories["mnist"]:
    history = histories["mnist"]
else:
    trainer.fit(model, datamodule=data_module)
    history = metric_tracker.history

# Test after training (sanity check)
# trainer.test(model, datamodule=data_module)

Seed set to 42
GPU available: True (mps), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

plot_training(history)

../_images/a6c6217e5beab525795f05b1b4623c3c61fa4ca6fc2879b8eaaf974525f67fd8.png

Cats vs Dogs#

A more realistic dataset: Cats vs Dogs
- Colored JPEG images, different sizes
- Not nicely centered, translation invariance is important
Preprocessing
- Decode JPEG images to floating-point tensors
- Rescale pixel values to [0,1]
- Resize images to 150x150 pixels

Uncomment to run from scratch

# TODO: upload dataset to OpenML so we can avoid the manual steps.

import os, shutil
# Download data from https://www.kaggle.com/c/dogs-vs-cats/data
# Uncompress `train.zip` into the `original_dataset_dir`
original_dataset_dir = '../data/cats-vs-dogs_original'

# The directory where we will
# store our smaller dataset
train_dir = os.path.join(data_dir, 'train')
validation_dir = os.path.join(data_dir, 'validation')

if not os.path.exists(data_dir):
    os.mkdir(data_dir)
    os.mkdir(train_dir)
    os.mkdir(validation_dir)

train_cats_dir = os.path.join(train_dir, 'cats')
train_dogs_dir = os.path.join(train_dir, 'dogs')
validation_cats_dir = os.path.join(validation_dir, 'cats')
validation_dogs_dir = os.path.join(validation_dir, 'dogs')

if not os.path.exists(train_cats_dir):
    os.mkdir(train_cats_dir)
    os.mkdir(train_dogs_dir)
    os.mkdir(validation_cats_dir)
    os.mkdir(validation_dogs_dir)

# Copy first 2000 cat images to train_cats_dir
fnames = ['cat.{}.jpg'.format(i) for i in range(2000)]
for fname in fnames:
    src = os.path.join(original_dataset_dir, fname)
    dst = os.path.join(train_cats_dir, fname)
    shutil.copyfile(src, dst)

# Copy next 1000 cat images to validation_cats_dir
fnames = ['cat.{}.jpg'.format(i) for i in range(2000, 3000)]
for fname in fnames:
    src = os.path.join(original_dataset_dir, fname)
    dst = os.path.join(validation_cats_dir, fname)
    shutil.copyfile(src, dst)

# Copy first 2000 dog images to train_dogs_dir
fnames = ['dog.{}.jpg'.format(i) for i in range(2000)]
for fname in fnames:
    src = os.path.join(original_dataset_dir, fname)
    dst = os.path.join(train_dogs_dir, fname)
    shutil.copyfile(src, dst)

# Copy next 1000 dog images to validation_dogs_dir
fnames = ['dog.{}.jpg'.format(i) for i in range(2000, 3000)]
for fname in fnames:
    src = os.path.join(original_dataset_dir, fname)
    dst = os.path.join(validation_dogs_dir, fname)
    shutil.copyfile(src, dst)

import random

# Set random seed for reproducibility
def seed_everything(seed=42):
    pl.seed_everything(seed)  # Sets seed for PyTorch Lightning
    torch.manual_seed(seed)  # PyTorch
    torch.cuda.manual_seed_all(seed)  # CUDA (if available)
    np.random.seed(seed)  # NumPy
    random.seed(seed)  # Python random module
    torch.backends.cudnn.deterministic = True  # Ensures reproducibility in CNNs
    torch.backends.cudnn.benchmark = False  # Ensures consistency

seed_everything(42)  # Set global seed

class CatDataModule(pl.LightningDataModule):
    def __init__(self, data_dir, batch_size=20, img_size=(150, 150)):
        super().__init__()
        self.data_dir = data_dir
        self.batch_size = batch_size
        self.img_size = img_size

        # Define image transformations
        self.transform = transforms.Compose([
            transforms.Resize(self.img_size),  # Resize to 150x150
            transforms.ToTensor(),  # Convert to tensor (also scales 0-1)
        ])

    def setup(self, stage=None):
        """Load datasets"""
        train_dir = os.path.join(self.data_dir, "train")
        val_dir = os.path.join(self.data_dir, "validation")

        self.train_dataset = datasets.ImageFolder(root=train_dir, transform=self.transform)
        self.val_dataset = datasets.ImageFolder(root=val_dir, transform=self.transform)

    def train_dataloader(self):
        return DataLoader(self.train_dataset, batch_size=self.batch_size, shuffle=True, num_workers=4)

    def val_dataloader(self):
        return DataLoader(self.val_dataset, batch_size=self.batch_size, shuffle=False, num_workers=4)

# ----------------------------
# Load dataset and visualize a batch
# ----------------------------
data_module = CatDataModule(data_dir=data_dir)
data_module.setup()
train_loader = data_module.train_dataloader()

Seed set to 42

# Get a batch of data
data_batch, labels_batch = next(iter(train_loader))

# Visualize images
plt.figure(figsize=(10, 5))
for i in range(7):
    plt.subplot(1, 7, i + 1)
    plt.xticks([])
    plt.yticks([])
    plt.imshow(data_batch[i].permute(1, 2, 0))  # Convert from (C, H, W) to (H, W, C)
    plt.title("Cat" if labels_batch[i] == 0 else "Dog", fontsize=16)
plt.tight_layout()
plt.show()

../_images/dcad454f1a540dc6eca4946dd21ede406ca3949e2336ede266b037527ee288cf.png

Data loader#

We create a Pytorch Lightning DataModule to do preprocessing and data loading

class ImageDataModule(pl.LightningDataModule):
  def __init__(self, data_dir, batch_size=20, img_size=(150, 150)):
    super().__init__()
    self.transform = transforms.Compose([
      transforms.Resize(self.img_size),  # Resize to 150x150
      transforms.ToTensor()])  # Convert to tensor (also scales 0-1)
  def setup(self, stage=None):
    self.train_dataset = datasets.ImageFolder(root=train_dir, transform=self.transform)
    self.val_dataset = datasets.ImageFolder(root=val_dir, transform=self.transform)

  def train_dataloader(self):
    return DataLoader(self.train_dataset, batch_size=self.batch_size, shuffle=True)
  def val_dataloader(self):
    return DataLoader(self.val_dataset, batch_size=self.batch_size, shuffle=False)

from torchmetrics.classification import Accuracy

# Model in PyTorch Lightning
class CatImageClassifier(pl.LightningModule):
    def __init__(self, learning_rate=0.001):
        super().__init__()
        self.save_hyperparameters()

        # Define convolutional layers
        self.conv_layers = nn.Sequential(
            nn.Conv2d(3, 32, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(32, 64, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(64, 128, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(128, 128, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.AdaptiveAvgPool2d(1)  # GAP replaces Flatten()
        )

        # Fully connected layers
        self.fc_layers = nn.Sequential(
            nn.Linear(128, 512),  # GAP outputs (batch, 128, 1, 1) → Flatten to (batch, 128)
            nn.ReLU(),
            nn.Linear(512, 1)  # Binary classification (1 output neuron)
        )

        self.loss_fn = nn.BCEWithLogitsLoss()
        self.accuracy = Accuracy(task="binary")

    def forward(self, x):
        x = self.conv_layers(x)  # Convolutions + GAP
        x = x.view(x.size(0), -1)  # Flatten from (batch, 128, 1, 1) → (batch, 128)
        x = self.fc_layers(x)
        return x

    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x).squeeze(1)  # Remove extra dimension
        loss = self.loss_fn(logits, y.float())  # BCE loss requires float labels

        preds = torch.sigmoid(logits)  # Convert logits to probabilities
        acc = self.accuracy(preds, y)

        self.log("train_loss", loss, prog_bar=True, on_epoch=True)
        self.log("train_acc", acc, prog_bar=True, on_epoch=True)
        return loss

    def validation_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x).squeeze(1)
        loss = self.loss_fn(logits, y.float())

        preds = torch.sigmoid(logits)
        acc = self.accuracy(preds, y)

        self.log("val_loss", loss, prog_bar=True, on_epoch=True)
        self.log("val_acc", acc, prog_bar=True, on_epoch=True)

    def configure_optimizers(self):
        return optim.Adam(self.parameters(), lr=self.hparams.learning_rate)

Model#

Since the images are more complex, we add another convolutional layer and increase the number of filters to 128.

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
CatImageClassifier                       [1, 1]                    --
├─Sequential: 1-1                        [1, 128, 1, 1]            --
│    └─Conv2d: 2-1                       [1, 32, 148, 148]         896
│    └─ReLU: 2-2                         [1, 32, 148, 148]         --
│    └─MaxPool2d: 2-3                    [1, 32, 74, 74]           --
│    └─Conv2d: 2-4                       [1, 64, 72, 72]           18,496
│    └─ReLU: 2-5                         [1, 64, 72, 72]           --
│    └─MaxPool2d: 2-6                    [1, 64, 36, 36]           --
│    └─Conv2d: 2-7                       [1, 128, 34, 34]          73,856
│    └─ReLU: 2-8                         [1, 128, 34, 34]          --
│    └─MaxPool2d: 2-9                    [1, 128, 17, 17]          --
│    └─Conv2d: 2-10                      [1, 128, 15, 15]          147,584
│    └─ReLU: 2-11                        [1, 128, 15, 15]          --
│    └─MaxPool2d: 2-12                   [1, 128, 7, 7]            --
│    └─AdaptiveAvgPool2d: 2-13           [1, 128, 1, 1]            --
├─Sequential: 1-2                        [1, 1]                    --
│    └─Linear: 2-14                      [1, 512]                  66,048
│    └─ReLU: 2-15                        [1, 512]                  --
│    └─Linear: 2-16                      [1, 1]                    513
==========================================================================================
Total params: 307,393
Trainable params: 307,393
Non-trainable params: 0
Total mult-adds (M): 234.16
==========================================================================================
Input size (MB): 0.27
Forward/backward pass size (MB): 9.68
Params size (MB): 1.23
Estimated Total Size (MB): 11.18
==========================================================================================

Training#

We use a Trainer module (from PyTorch Lightning) to simplify training

trainer = pl.Trainer(
    max_epochs=20,        # Train for 20 epochs
    accelerator="gpu",    # Move data and model to GPU
    devices="auto",       # Number of GPUs
    deterministic=True,   # Set random seeds, for reproducibility
    callbacks=[metric_tracker,      # Callback for logging loss and acc
               checkpoint_callback] # Callback for logging weights
)
trainer.fit(model, datamodule=data_module)

Tip: to store the best model weights, you can add a ModelCheckpoint callback

checkpoint_callback = ModelCheckpoint(
    monitor="val_loss",   # Save model with lowest val. loss
    mode="min",           # "min" for loss, "max" for accuracy
    save_top_k=1,         # Keep only the best model
    dirpath="weights/",   # Directory to save checkpoints
    filename="cat_model", # File name pattern
)

The model learns well for the first 20 epochs, but then starts overfitting a lot!

Seed set to 42
GPU available: True (mps), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

plot_training(history_cat)

../_images/462ba70584ea639fd37c8dad26b1e6b700218bb5aac048c88590ee1b085aebf0.png

Solving overfitting in CNNs#

There are various ways to further improve the model:
- Generating more training data (data augmentation)
- Regularization (e.g. Dropout, L1/L2, Batch Normalization,…)
- Use pretrained rather than randomly initialized filters
  - These are trained on a lot more data

Data augmentation#

Generate new images via image transformations (only on training data!)
- Images will be randomly transformed every epoch
Update the transform in the data module

self.train_transform = transforms.Compose([
    transforms.Resize(self.img_size), # Resize to 150x150
    transforms.RandomRotation(40),    # Rotations up to 40 degrees
    transforms.RandomResizedCrop(self.img_size,
                                 scale=(0.8, 1.2)), # Scale + crop, up to 20%
    transforms.RandomHorizontalFlip(),              # Horizontal flip
    transforms.RandomAffine(degrees=0, shear=20),   # Shear, up to 20%
    transforms.ColorJitter(brightness=0.2, contrast=0.2,
                           saturation=0.2),         # Color jitter

    transforms.ToTensor(),
    transforms.Normalize(mean=[0.5, 0.5, 0.5], std=[0.5, 0.5, 0.5])
    ])

Augmentation example

def show_augmented_images(data_module, num_images=8):
    """Visualize the same image with different random augmentations."""

    train_dataset = data_module.train_dataset  # Get training dataset with augmentation

    # Select a random image (without augmentation)
    idx = np.random.randint(len(train_dataset))
    original_img, label = train_dataset[idx]  # This is already augmented

    # Convert original image back to NumPy format
    original_img_np = original_img.permute(1, 2, 0).numpy()  # Convert (C, H, W) → (H, W, C)
    original_img_np = (original_img_np - original_img_np.min()) / (original_img_np.max() - original_img_np.min())  # Normalize

    fig, axes = plt.subplots(2, 4, figsize=(10, 5))  # Create 4x2 grid
    axes = axes.flatten()

    for i in range(num_images):
        # Apply new augmentation on the same image each time
        img, _ = train_dataset[idx]  # Re-fetch the same image, but with a new random augmentation

        # Convert tensor image back to NumPy format
        img = img.permute(1, 2, 0).numpy()  # Convert (C, H, W) → (H, W, C)
        img = (img - img.min()) / (img.max() - img.min())  # Normalize

        # Plot the augmented image
        axes[i].imshow(img)
        axes[i].set_xticks([])
        axes[i].set_yticks([])

    plt.tight_layout()
    plt.show()

# Load dataset and visualize augmented images
data_module = CatDataModule(data_dir)  # Set correct dataset path
data_module.setup()
show_augmented_images(data_module)

../_images/e90fb8a88b6721e45a5c9b3d4f1bc8c3feed009e0f8e193a923162c9e8d8216a.png

We also add Dropout before the Dense layer, and L2 regularization (‘weight decay’) in Adam

class CatImageClassifier(pl.LightningModule):
    def __init__(self, learning_rate=0.001):
        super().__init__()
        self.save_hyperparameters()

        # Define convolutional layers (CNN)
        self.conv_layers = nn.Sequential(
            nn.Conv2d(3, 32, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(32, 64, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(64, 128, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.Conv2d(128, 128, kernel_size=3, padding=0),
            nn.ReLU(),
            nn.MaxPool2d(2, 2),

            nn.AdaptiveAvgPool2d(1)  # GAP instead of Flatten
        )

        # Fully connected layers (FC) with Dropout
        self.fc_layers = nn.Sequential(
            nn.Linear(128, 512),  # GAP outputs (batch, 128, 1, 1) → Flatten to (batch, 128)
            nn.ReLU(),
            nn.Dropout(0.5),  # Dropout (same as Keras Dropout(0.5))
            nn.Linear(512, 1)  # Binary classification (1 output neuron)
        )

        self.loss_fn = nn.BCEWithLogitsLoss()
        self.accuracy = Accuracy(task="binary")

    def forward(self, x):
        x = self.conv_layers(x)  # Convolutions + GAP
        x = x.view(x.size(0), -1)  # Flatten from (batch, 128, 1, 1) → (batch, 128)
        x = self.fc_layers(x)
        return x

    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x).squeeze(1)  # Remove extra dimension
        loss = self.loss_fn(logits, y.float())  # BCE loss requires float labels

        preds = torch.sigmoid(logits)  # Convert logits to probabilities
        acc = self.accuracy(preds, y)

        self.log("train_loss", loss, prog_bar=True, on_epoch=True)
        self.log("train_acc", acc, prog_bar=True, on_epoch=True)
        return loss

    def validation_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x).squeeze(1)
        loss = self.loss_fn(logits, y.float())

        preds = torch.sigmoid(logits)
        acc = self.accuracy(preds, y)

        self.log("val_loss", loss, prog_bar=True, on_epoch=True)
        self.log("val_acc", acc, prog_bar=True, on_epoch=True)

    def configure_optimizers(self):
        return optim.Adam(self.parameters(), lr=self.hparams.learning_rate, weight_decay=1e-4)

model = CatImageClassifier()
summary(model, input_size=(1, 3, 150, 150))

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
CatImageClassifier                       [1, 1]                    --
├─Sequential: 1-1                        [1, 128, 1, 1]            --
│    └─Conv2d: 2-1                       [1, 32, 148, 148]         896
│    └─ReLU: 2-2                         [1, 32, 148, 148]         --
│    └─MaxPool2d: 2-3                    [1, 32, 74, 74]           --
│    └─Conv2d: 2-4                       [1, 64, 72, 72]           18,496
│    └─ReLU: 2-5                         [1, 64, 72, 72]           --
│    └─MaxPool2d: 2-6                    [1, 64, 36, 36]           --
│    └─Conv2d: 2-7                       [1, 128, 34, 34]          73,856
│    └─ReLU: 2-8                         [1, 128, 34, 34]          --
│    └─MaxPool2d: 2-9                    [1, 128, 17, 17]          --
│    └─Conv2d: 2-10                      [1, 128, 15, 15]          147,584
│    └─ReLU: 2-11                        [1, 128, 15, 15]          --
│    └─MaxPool2d: 2-12                   [1, 128, 7, 7]            --
│    └─AdaptiveAvgPool2d: 2-13           [1, 128, 1, 1]            --
├─Sequential: 1-2                        [1, 1]                    --
│    └─Linear: 2-14                      [1, 512]                  66,048
│    └─ReLU: 2-15                        [1, 512]                  --
│    └─Dropout: 2-16                     [1, 512]                  --
│    └─Linear: 2-17                      [1, 1]                    513
==========================================================================================
Total params: 307,393
Trainable params: 307,393
Non-trainable params: 0
Total mult-adds (M): 234.16
==========================================================================================
Input size (MB): 0.27
Forward/backward pass size (MB): 9.68
Params size (MB): 1.23
Estimated Total Size (MB): 11.18
==========================================================================================

No more overfitting!

Seed set to 42
GPU available: True (mps), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

# history_cat2 = histories["cat2"]
# model = CatImageClassifier.load_from_checkpoint("../data/checkpoints/cat_model.ckpt")

plot_training(history_cat2)

../_images/f387b643aa497b74d53a03093022b69af7edff151b5ea1808e58c1123f5576be.png

import pickle

histories = {"mnist":history,"cat":history_cat,"cat2":history_cat2}
with open("../data/histories.pkl", "wb") as f:
    pickle.dump(histories, f)

Real-world CNNs#

VGG16#

Deeper architecture (16 layers): allows it to learn more complex high-level features
- Textures, patterns, shapes,…
Small filters (3x3) work better: capture spatial information while reducing number of parameters
Max-pooling (2x2): reduces spatial dimension, improves translation invariance
- Lower resolution forces model to learn robust features (less sensitive to small input changes)
- Only after every 2 layers, otherwise dimensions reduce too fast
Downside: too many parameters, expensive to train

Inceptionv3#

Inception modules: parallel branches learn features of different sizes and scales (3x3, 5x5, 7x7,…)
- Add reduction blocks that reduce dimensionality via convolutions with stride 2
Factorized convolutions: a 3x3 conv. can be replaced by combining 1x3 and 3x1, and is 33% cheaper
- A 5x5 can be replaced by combining 3x3 and 3x3, which can in turn be factorized as above
1x1 convolutions, or Network-In-Network (NIN) layers help reduce the number of channels: cheaper
An auxiliary classifier adds an additional gradient signal deeper in the network

Factorized convolutions#

A 3x3 conv. can be replaced by combining 1x3 and 3x1, and is 33% cheaper

ResNet50#

Residual (skip) connections: add earlier feature map to a later one (dimensions must match)
- Information can bypass layers, reduces vanishing gradients, allows much deeper nets
Residual blocks: skip small number or layers and repeat many times
- Match dimensions though padding and 1x1 convolutions
- When resolution drops, add 1x1 convolutions with stride 2
Can be combined with Inception blocks

Interpreting the model#

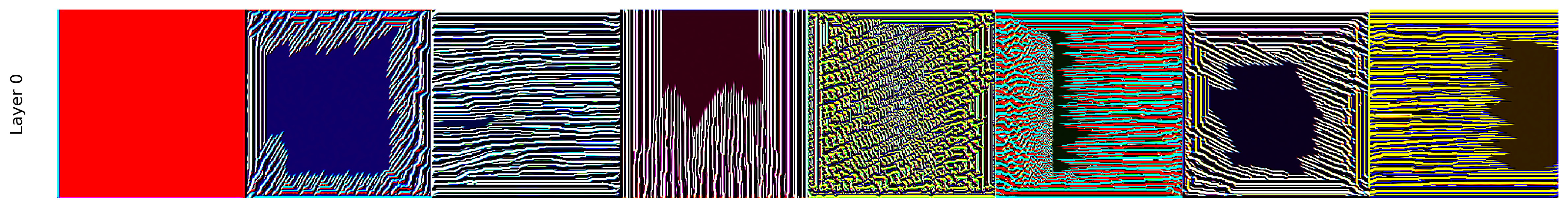

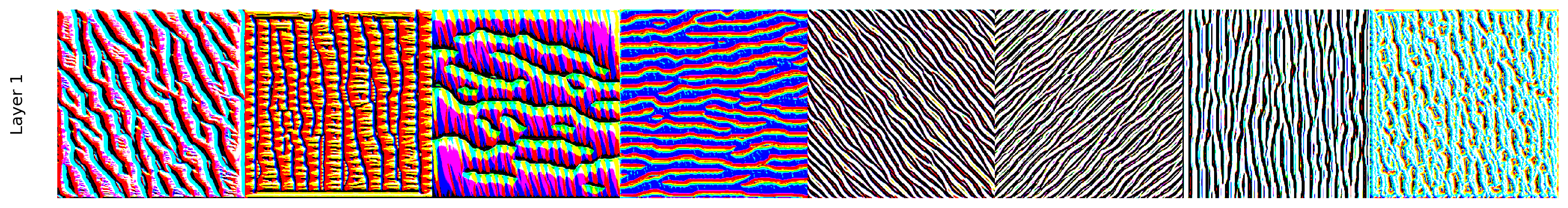

Let’s see what the convnet is learning exactly by observing the intermediate feature maps
We can do this easily by attaching a ‘hook’ to a layer so we can read it’s output (activation)

# Create a hook to extract intermediate output (activation)
def hook_fn(module, input, output):
    nonlocal activation
    activation = output.detach()

# Add a hook to a specific layer
hook = model.features[layer_id].register_forward_hook(hook_fn)

# Do a forward pass without gradient computation
with torch.no_grad():
    model(image_tensor)

return activation

Result for a specific filter (Layer 0, Filter 0)

from PIL import Image
import os

def set_seed(seed=42):
    torch.manual_seed(seed)
    torch.cuda.manual_seed_all(seed)
    np.random.seed(seed)
    random.seed(seed)
    torch.backends.cudnn.deterministic = True
    torch.backends.cudnn.benchmark = False

set_seed(42)

def load_image(img_path, img_size=(150, 150)):
    """Load and preprocess image as a PyTorch tensor."""
    transform = transforms.Compose([
        transforms.Resize(img_size),
        transforms.ToTensor(),  # Converts image to tensor with values in [0,1]
    ])

    img = Image.open(img_path).convert("RGB")  # Ensure RGB format
    img_tensor = transform(img).unsqueeze(0)  # Add batch dimension
    return img_tensor

def get_layer_activations(model, img_tensor, layer_idx=0, keep_gradients=False):
    """Extract activations from a specific layer."""
    activation = None

    def hook_fn(module, input, output):
        nonlocal activation
        if keep_gradients: # Only for gradient ascent (later)
            activation = output
        else:
            activation = output.detach()

    # Register hook to capture the activation
    # Handles our custom model and more general models like VGG
    layer = model.conv_layers[layer_idx] if hasattr(model, "conv_layers") else model[layer_idx]
    hook = layer.register_forward_hook(hook_fn)

    if keep_gradients:
        model(img_tensor)  # Run the image through the model
    else:
        with torch.no_grad():
            model(img_tensor)  # Idem but no grad

    hook.remove()  # Remove the hook after getting activations
    return activation

def visualize_activations(model, img_tensor, layer_idx=0, filter_idx=0):
    """Visualize input image and activations of a selected filter."""

    # Get activations from the specified layer
    activations = get_layer_activations(model, img_tensor, layer_idx)

    # Convert activations to numpy for visualization
    activation_np = activations.squeeze(0).cpu().numpy()  # Remove batch dim

    # Show input image
    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(4, 2))

    # Convert input tensor to NumPy
    img_np = img_tensor.squeeze(0).permute(1, 2, 0).cpu().numpy()  # (H, W, C)
    img_np = np.clip(img_np, 0, 1)  # Ensure values are in range [0,1]

    ax1.imshow(img_np)
    ax1.set_xticks([])
    ax1.set_yticks([])
    ax1.set_xlabel("Input Image", fontsize=8)

    # Visualize a specific filter's activation
    ax2.imshow(activation_np[filter_idx], cmap="viridis")
    ax2.set_xticks([])
    ax2.set_yticks([])
    ax2.set_xlabel(f"Activation of Filter {filter_idx}", fontsize=8)

    plt.tight_layout()
    plt.show()

# Load model and visualize activations
img_path = os.path.join(data_dir, "train/cats/cat.1700.jpg")  # Update path
img_tensor = load_image(img_path).to(accelerator)

visualize_activations(model, img_tensor, layer_idx=0, filter_idx=0)

../_images/f1f30915335c38447c62622d6a17e82c2177acbc762f137ac47f8758464bd756.png

The same filter responds quite differently for other inputs.

../_images/9a654205f561f68a0f9ea39235fc502145bcf286aaefab24c33b2d782439e493.png

Let’s plot all the activations to see what happens in the network

First 2 convolutional layers: various edge detectors
Empty filter activations occur:
- Filter is not interested in that input image (maybe it’s dog-specific)
- Incomplete training, Dying ReLU,…

../_images/8903c4a7bb5b139c6d132652dfd826bb62594cc97d92d14996e9fbf13c83eb2c.png

../_images/5e1edd38ed0261656e49dc47fe5e55db901e61c83755e66fc29d6db4dee6d9ac.png

3rd convolutional layer: increasingly abstract: ears, nose, eyes

../_images/bdc9c87394b0a3c690c8f4741fdc2e0ba579bc5a58a1bd3cdcfa5999491a17fd.png

Last convolutional layer: more abstract patterns
Increasingly combine information from all previous filters

../_images/44c281af2e9f7311eb1d04259362fd1aaae8cd7c1bd9591ea54387d7c425d379.png

Same layer, with dog image input
- Some filters react only to dogs (or cats)
- Deeper layers learn representations that separate the classes

../_images/3ed4b85a9ac333cb5f6236ddf031ab321e15c5c3119b67c9546872e3ef1e13e3.png

Spatial hierarchies#

Deep convnets can learn spatial hierarchies of patterns
- First layer can learn very local patterns (e.g. edges)
- Second layer can learn specific combinations of patterns
- Every layer can learn increasingly complex abstractions

Visualizing the learned filters#

Visualize filters by finding the input image that they are maximally responsive to
gradient ascent in input space : start from a random image \(x\), use loss to update the input values to values that the filter responds to more strongly (keep weights fixed)
- \(X_{(i+1)} = X_{(i)} + \frac{\partial L(x, X_{(i)})}{\partial X} * \eta\)

    # Create a random input tensor and tell Adam to optimize the pixels
    input_img = torch.randn((1, 3, size, size), requires_grad=True)
    optimizer = torch.optim.Adam([input_img], lr=step_size)

    # Get activations (same as before) of this input for a specific filter
    # Compute gradient to update (maximize) the activations for this filter

    for _ in range(steps):
        optimizer.zero_grad()
        activations = get_layer_activations(model, input_img, layer_idx)
        loss = activations[0, filter_idx].mean()  # Maximize activation of this filter
        loss.backward()
        optimizer.step()

Show code cell source Hide code cell source

import torch.nn.functional as F
from torchvision import transforms

def deprocess_image(x):
    """Normalize and convert tensor to a displayable image."""
    x -= x.mean()
    x /= (x.std() + 1e-5)
    x *= 0.1
    x += 0.5
    x = np.clip(x, 0, 1)
    x *= 255
    return np.clip(x, 0, 255).astype('uint8')

def generate_pattern(model, layer_idx, filter_idx, size=56, steps=40, step_size=1.0):
    """Perform gradient ascent to generate a visualization of the filter."""
    model.eval()
    #device = next(model.parameters()).device

    # Start with a random image
    input_img = torch.randn((1, 3, size, size), requires_grad=True, device=accelerator)
    optimizer = torch.optim.Adam([input_img], lr=step_size)

    for _ in range(steps):
        optimizer.zero_grad()
        activations = get_layer_activations(model, input_img, layer_idx, keep_gradients=True)
        loss = activations[0, filter_idx].mean()  # Maximize activation of this filter
        loss.backward()
        optimizer.step()

    img = input_img.detach().squeeze().permute(1, 2, 0).cpu().numpy()
    return deprocess_image(img)

def visualize_filters(model, layer_idx, grid_size=(8, 8), size=64, margin=5):
    """Visualize all filters of a layer in a grid using gradient ascent."""
    num_filters = grid_size[0] * grid_size[1]
    results = np.zeros((grid_size[0] * size + (grid_size[0] - 1) * margin,
                        grid_size[1] * size + (grid_size[1] - 1) * margin, 3), dtype=np.uint8)

    for i in range(grid_size[0]):
        for j in range(grid_size[1]):
            filter_idx = i * grid_size[1] + j
            filter_img = generate_pattern(model, layer_idx, filter_idx, size=size)

            h_start = i * size + i * margin
            h_end = h_start + size
            v_start = j * size + j * margin
            v_end = v_start + size

            results[h_start:h_end, v_start:v_end, :] = filter_img

    plt.figure(figsize=(4, 4))
    plt.imshow(results)
    plt.axis('off')
    plt.show()

Learned filters of second convolutional layer
Mostly general, some respond to specific shapes/colors

The next layer starts showing some structures / textures

visualize_filters(model, layer_idx=6)

Last convolutional layer

More focused on center, some vague cat/dog head shapes

We need to go deeper. Bigger networks, more data!#

Let’s do this again for the VGG16 network pretrained on ImageNet

from torchvision.models import vgg16
vgg16_model = vgg16(pretrained=True) # Load with pretrained weights
vgg16_model = vgg16_model.features   # Keep only the features (not the head)

# Print model summary
summary(vgg16_model_feat, input_size=(1, 3, 224, 224))  # Pretraining images where 224x224

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
Sequential                               [1, 512, 7, 7]            --
├─Conv2d: 1-1                            [1, 64, 224, 224]         1,792
├─ReLU: 1-2                              [1, 64, 224, 224]         --
├─Conv2d: 1-3                            [1, 64, 224, 224]         36,928
├─ReLU: 1-4                              [1, 64, 224, 224]         --
├─MaxPool2d: 1-5                         [1, 64, 112, 112]         --
├─Conv2d: 1-6                            [1, 128, 112, 112]        73,856
├─ReLU: 1-7                              [1, 128, 112, 112]        --
├─Conv2d: 1-8                            [1, 128, 112, 112]        147,584
├─ReLU: 1-9                              [1, 128, 112, 112]        --
├─MaxPool2d: 1-10                        [1, 128, 56, 56]          --
├─Conv2d: 1-11                           [1, 256, 56, 56]          295,168
├─ReLU: 1-12                             [1, 256, 56, 56]          --
├─Conv2d: 1-13                           [1, 256, 56, 56]          590,080
├─ReLU: 1-14                             [1, 256, 56, 56]          --
├─Conv2d: 1-15                           [1, 256, 56, 56]          590,080
├─ReLU: 1-16                             [1, 256, 56, 56]          --
├─MaxPool2d: 1-17                        [1, 256, 28, 28]          --
├─Conv2d: 1-18                           [1, 512, 28, 28]          1,180,160
├─ReLU: 1-19                             [1, 512, 28, 28]          --
├─Conv2d: 1-20                           [1, 512, 28, 28]          2,359,808
├─ReLU: 1-21                             [1, 512, 28, 28]          --
├─Conv2d: 1-22                           [1, 512, 28, 28]          2,359,808
├─ReLU: 1-23                             [1, 512, 28, 28]          --
├─MaxPool2d: 1-24                        [1, 512, 14, 14]          --
├─Conv2d: 1-25                           [1, 512, 14, 14]          2,359,808
├─ReLU: 1-26                             [1, 512, 14, 14]          --
├─Conv2d: 1-27                           [1, 512, 14, 14]          2,359,808
├─ReLU: 1-28                             [1, 512, 14, 14]          --
├─Conv2d: 1-29                           [1, 512, 14, 14]          2,359,808
├─ReLU: 1-30                             [1, 512, 14, 14]          --
├─MaxPool2d: 1-31                        [1, 512, 7, 7]            --
==========================================================================================
Total params: 14,714,688
Trainable params: 14,714,688
Non-trainable params: 0
Total mult-adds (G): 15.36
==========================================================================================
Input size (MB): 0.60
Forward/backward pass size (MB): 108.38
Params size (MB): 58.86
Estimated Total Size (MB): 167.84
==========================================================================================

# Retry, with a custom class this time
class SaveFeatures():
    def __init__(self, module):
        self.hook = module.register_forward_hook(self.hook_fn)

    def hook_fn(self, module, input, output):
        self.features = output

    def close(self):
        self.hook.remove()

class FilterVisualizer():
    def __init__(self, size=56, upscaling_steps=12, upscaling_factor=1.2, device=None):
        self.size = size
        self.upscaling_steps = upscaling_steps
        self.upscaling_factor = upscaling_factor
        self.device = accelerator
        self.model = models.vgg16(pretrained=True).features.to(self.device).eval()

    def visualize(self, layer, filter, lr=0.1, opt_steps=20, blur=None):
        sz = self.size
        img = np.uint8(np.random.uniform(150, 180, (sz, sz, 3))) / 255  # generate random image
        transform = transforms.Compose([
            transforms.ToTensor(),
        ])

        activations = SaveFeatures(self.model[layer])  # register hook

        for _ in range(self.upscaling_steps):  # scale the image up
            img_var = torch.tensor(transform(Image.fromarray((img * 255).astype(np.uint8)))[None],
                                   dtype=torch.float32, requires_grad=True, device=self.device)
            optimizer = optim.Adam([img_var], lr=lr, weight_decay=1e-6)

            for _ in range(opt_steps):  # optimize pixel values
                optimizer.zero_grad()
                self.model(img_var)
                loss = -activations.features[0, filter].mean()
                loss.backward()
                optimizer.step()

            img = img_var.detach().cpu().numpy()[0].transpose(1, 2, 0)
            self.output = img
            sz = int(self.upscaling_factor * sz)  # calculate new image size
            img = cv2.resize(img, (sz, sz), interpolation=cv2.INTER_CUBIC)  # scale image up
            if blur is not None:
                img = cv2.blur(img, (blur, blur))  # blur image

        activations.close()
        return self.output

    def visualize_filters(self, layer, num_filters=None, blur=None, filters=None):
        activations = SaveFeatures(self.model[layer])
        num_filters = num_filters or activations.features.shape[1]  # Default to all filters in layer
        filter_images = []

        if filters:
            num_filters = len(filters)
            for filter_idx in filters:
                img = self.visualize(layer, filter_idx, blur=blur)
                filter_images.append(img)
        else:
            for filter_idx in range(num_filters):
                img = self.visualize(layer, filter_idx, blur=blur)
                filter_images.append(img)

        self.show_filters(filter_images, num_filters)
        activations.close()

    def show_filters(self, filter_images, num_filters):
        cols = min(8, num_filters)  # Limit to max 8 columns
        rows = (num_filters // cols) + int(num_filters % cols > 0)

        # Dynamically adjust figure size
        fig, axes = plt.subplots(rows, cols, figsize=(cols, rows))
        axes = np.array(axes).flatten()  # Flatten in case of single row/col

        for i, img in enumerate(filter_images):
            axes[i].imshow(np.clip(img, 0, 1))
            axes[i].axis('off')

        # Remove empty subplots
        for i in range(len(filter_images), len(axes)):
            fig.delaxes(axes[i])  # Delete extra empty axes

        fig.subplots_adjust(wspace=0, hspace=0)  # Remove spacing between subplots
        plt.tight_layout(pad=0)  # Remove extra padding around the figure
        plt.show()

VGG Layer 5

filters=[12, 16, 86, 110]
FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(5, filters=filters, blur=5)

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[442], line 3
      1 filters=[12, 16, 86, 110]
      2 FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
----> 3 FV.visualize_filters(5, filters=filters, blur=5)

Cell In[441], line 53, in FilterVisualizer.visualize_filters(self, layer, num_filters, blur, filters)
     51 def visualize_filters(self, layer, num_filters=None, blur=None, filters=None):
     52     activations = SaveFeatures(self.model[layer])
---> 53     num_filters = num_filters or activations.features.shape[1]  # Default to all filters in layer
     54     filter_images = []
     56     if filters:

AttributeError: 'SaveFeatures' object has no attribute 'features'

FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(5, num_filters=32, blur=5)

VGG Layer 10

FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(10, num_filters=32, blur=5)

VGG Layer 17

FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(17, num_filters=32, blur=5)

VGG Layer 24

FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(24, num_filters=32, blur=5)

VGG Layer 28

FV = FilterVisualizer(size=56, upscaling_steps=12, upscaling_factor=1.2)
FV.visualize_filters(28, num_filters=32, blur=5)

Visualizing class activation#

We can also visualize which part of the input image had the greatest influence on the final classification. Helps to interpret what the model is paying attention to.
Class activation maps : produces a heatmap over the input image
- Choose a convolution layer, do Global Average Pooling (GAP) to get one output per filter
- Get the weights between those outputs and the class of interest
- Compute the weighted sum of all filter activations: combines what each filter is responding to and how much this affects the class prediction

Implementing gradCAM#

    target_layer = model.layer4[-1] # Last conv layer

    # Hooks to capture activations and gradients
    def forward_hook(module, input, output):
        activations = output

    def backward_hook(module, grad_input, grad_output):
        gradients = grad_output[0]

    # Register hooks
    target_layer.register_forward_hook(forward_hook)
    target_layer.register_full_backward_hook(backward_hook)

    # Forward pass
    output = model(img_tensor)
    pred_class = output.argmax(dim=1).item()

    # Backward pass to compute gradients
    model.zero_grad()
    output[:, pred_class].backward()

    # Compute Grad-CAM heatmap
    weights = torch.mean(gradients, dim=[2, 3], keepdim=True)  # GAP layer
    heatmap = torch.sum(weights * activations, dim=1).squeeze()

Example on ResNet50 with a specific input image (class Elephant)

import torch
import torch.nn.functional as F
import numpy as np
import cv2
import matplotlib.pyplot as plt
from torchvision import models, transforms


def gradCAM(img_path):
    # Load a pre-trained model (e.g., ResNet50)
    model = models.resnet50(pretrained=True)
    model.eval()

    # Define the target convolutional layer for Grad-CAM (last conv layer of ResNet)
    target_layer = model.layer4[-1]

    # Define the preprocessing transformation
    preprocess = transforms.Compose([
        transforms.ToPILImage(),
        transforms.Resize((224, 224)),
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
    ])

    # Load and preprocess the image
    original_img = cv2.imread(img_path)
    original_img = cv2.cvtColor(original_img, cv2.COLOR_BGR2RGB)  # Convert BGR to RGB
    img_tensor = preprocess(original_img).unsqueeze(0)  # Add batch dimension

    # Store activations and gradients inside function scope
    activations = None
    gradients = None

    # Hooks to capture activations and gradients
    def forward_hook(module, input, output):
        nonlocal activations  # Ensure we modify the function-scoped variable
        activations = output

    def backward_hook(module, grad_input, grad_output):
        nonlocal gradients  # Ensure we modify the function-scoped variable
        gradients = grad_output[0]

    # Register hooks
    target_layer.register_forward_hook(forward_hook)
    target_layer.register_full_backward_hook(backward_hook)

    # Forward pass
    output = model(img_tensor)
    pred_class = output.argmax(dim=1).item()

    # Backward pass to compute gradients
    model.zero_grad()
    output[:, pred_class].backward()

    # Ensure hooks stored values
    if activations is None or gradients is None:
        raise RuntimeError("Hooks did not capture activations or gradients.")

    # Compute Grad-CAM heatmap
    weights = torch.mean(gradients, dim=[2, 3], keepdim=True)  # Global Average Pooling
    heatmap = torch.sum(weights * activations, dim=1).squeeze()
    heatmap = heatmap.cpu().detach().numpy()

    # Normalize heatmap
    heatmap = np.maximum(heatmap, 0)  # ReLU (only positive values)
    heatmap /= (np.max(heatmap) + 1e-10)  # Normalize to [0,1] to avoid division by zero

    # Resize heatmap to match original image size
    heatmap = cv2.resize(heatmap, (original_img.shape[1], original_img.shape[0]))

    # Convert heatmap to colormap
    heatmap = np.uint8(255 * heatmap)  # Scale to 0-255
    heatmap = cv2.applyColorMap(heatmap, cv2.COLORMAP_JET)  # Apply colormap

    # Overlay heatmap on original image
    superimposed_img = cv2.addWeighted(original_img, 0.6, heatmap, 0.4, 0)

    # Display result
    plt.figure(figsize=(8, 8))
    plt.imshow(superimposed_img)
    plt.axis("off")
    plt.title("Grad-CAM Heatmap Overlay", fontsize=12)
    plt.show()

img_path = '../notebooks/images/10_elephants.jpg'
gradCAM(img_path)

../_images/d6d294ac9dff11d666339feec06a14c0304e6dfc3248368e16794b263cee1153.png

Transfer learning#

We can re-use pretrained networks instead of training from scratch
Learned features can be a generic model of the visual world
Use convolutional base to contruct features, then train any classifier on new data
Also called transfer learning , which is a kind of meta-learning

Let’s instantiate the VGG16 model (without the dense layers)
The final feature map has shape (7, 7, 512)

vgg16_model = vgg16(pretrained=True)
conv_base = vgg16_model.features

Using pre-trained networks: 3 ways#

Fast feature extraction (for similar task, little data)
- Call predict from the convolutional base to build new features
- Use outputs as input to a new neural net (or other algorithm)
End-to-end tuning (for similar task, lots of data + data augmentation)
- Extend the convolutional base model with a new dense layer
- Train it end to end on the new data (expensive!)
Fine-tuning (for somewhat different task)
- Unfreeze a few of the top convolutional layers, and retrain
- Update only the more abstract representations

Fast feature extraction (without data augmentation)#

Build Dense neural net (with Dropout)
Run every batch through the pre-trained (frozen) convolutional base

class ImageClassifier(pl.LightningModule):
    def __init__(self, conv_base, input_dim):
        super().__init__()
        self.conv_base = conv_base  # Keep conv layers
        self.conv_base.eval()  # Set to eval mode
        for param in self.conv_base.parameters():
            param.requires_grad = False  # Freeze convolutional layers

        self.classifier = nn.Sequential(
            nn.Linear(input_dim, 256),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(256, 1),
        )
        self.criterion = nn.BCELoss()

    def forward(self, x):
        with torch.no_grad():  # Prevent gradients in conv layers
            features = self.conv_base(x)
            features = features.view(features.size(0), -1)  # Flatten
        return self.classifier(features)

Create and train the model

# Get pretrained network
conv_base = vgg16(pretrained=True).features.to(accelerator)
input_dim = 512 * 7 * 7  # Feature map size from VGG16

# Initialize DataModule and Model
model = ImageClassifier(conv_base, input_dim)
data_module = ImageDataModule(train_dir, val_dir)

# Train
trainer = pl.Trainer(
    max_epochs=EPOCHS,
    accelerator=accelerator,
)
trainer.fit(model, data_module)

Show code cell source Hide code cell source

# Hyperparameters
BATCH_SIZE = 32
EPOCHS = 30
LEARNING_RATE = 1e-4
IMAGE_SIZE = (150, 150)

# Define DataModule
class ImageDataModule(pl.LightningDataModule):
    def __init__(self, train_dir, val_dir, batch_size=BATCH_SIZE):
        super().__init__()
        self.train_dir = train_dir
        self.val_dir = val_dir
        self.batch_size = batch_size
        self.transform = transforms.Compose([
            transforms.Resize(IMAGE_SIZE),
            transforms.ToTensor(),
            transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
        ])

    def setup(self, stage=None):
        self.train_dataset = datasets.ImageFolder(self.train_dir, transform=self.transform)
        self.val_dataset = datasets.ImageFolder(self.val_dir, transform=self.transform)

    def train_dataloader(self):
        return DataLoader(self.train_dataset, batch_size=self.batch_size, shuffle=True)

    def val_dataloader(self):
        return DataLoader(self.val_dataset, batch_size=self.batch_size, shuffle=False)


# Define Model
class ImageClassifier(pl.LightningModule):
    def __init__(self, conv_base, input_dim):
        super().__init__()
        self.conv_base = conv_base  # Keep conv layers
        self.conv_base.eval()  # Set to eval mode (but still in model)
        for param in self.conv_base.parameters():
            param.requires_grad = False  # Freeze convolutional layers

        self.classifier = nn.Sequential(
            nn.Linear(input_dim, 256),
            nn.ReLU(),
            nn.Dropout(0.5),
            nn.Linear(256, 1),
            nn.Sigmoid()
        )
        self.criterion = nn.BCELoss()

    def forward(self, x):
        with torch.no_grad():  # Prevent gradients in conv layers
            features = self.conv_base(x)
            features = features.view(features.size(0), -1)  # Flatten
        return self.classifier(features)

    def training_step(self, batch, batch_idx):
        inputs, targets = batch
        outputs = self(inputs)  # Forward pass includes feature extraction
        loss = self.criterion(outputs, targets)
        self.log("train_loss", loss, prog_bar=True)
        return loss

    def validation_step(self, batch, batch_idx):
        inputs, targets = batch
        outputs = self(inputs)
        loss = self.criterion(outputs, targets)
        predicted = (outputs > 0.5).float()
        accuracy = (predicted == targets).float().mean()
        self.log("val_loss", loss, prog_bar=True)
        self.log("val_acc", accuracy, prog_bar=True)

    def configure_optimizers(self):
        return torch.optim.Adam(self.classifier.parameters(), lr=LEARNING_RATE)

train_dir = "/path/to/train"
val_dir = "/path/to/validation"

# Initialize DataModule and Model
conv_base = vgg16(pretrained=True).features.to(accelerator)
input_dim = 512 * 7 * 7  # Feature map size from VGG16

model = ImageClassifier(conv_base, input_dim)
data_module = ImageDataModule(train_dir, val_dir)

trainer = pl.Trainer(
    max_epochs=EPOCHS,
    accelerator=accelerator,
)

trainer.fit(model, data_module)

Fast feature extraction (with data augmentation)#

Simply add the Dense layers to the convolutional base
Freeze the convolutional base
Add data augmentation to the data module

class FFEClassifier(nn.Module):
    def __init__(self, conv_base):
        super(CNNClassifier, self).__init__()
        self.conv_base = conv_base  # Pretrained feature extractor
        self.flatten = nn.Flatten()  # Flatten feature maps
        self.fc = nn.Sequential(
            nn.Linear(512 * 4 * 4, 256),  # Adjust input size based on feature maps
            nn.ReLU(),
            nn.Linear(256, 1),
            nn.Sigmoid()  # Outputs probability (0 to 1)
        )

    def forward(self, x):
        with torch.no_grad():  # Ensure no gradients for the conv_base
            x = self.conv_base(x)
        x = self.flatten(x)
        x = self.fc(x)
        return x

for param in conv_base.parameters(): # Freeze
    param.requires_grad = False
model = FFEClassifier(conv_base)
trainer.fit(model, data_module)

Architecture

summary(model, input_size=(1, 3, 150, 150))  # Correct input shape for VGG16

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
FFEClassifier                            [1, 1]                    --
├─Sequential: 1-1                        [1, 512, 4, 4]            --
│    └─Conv2d: 2-1                       [1, 64, 150, 150]         (1,792)
│    └─ReLU: 2-2                         [1, 64, 150, 150]         --
│    └─Conv2d: 2-3                       [1, 64, 150, 150]         (36,928)
│    └─ReLU: 2-4                         [1, 64, 150, 150]         --
│    └─MaxPool2d: 2-5                    [1, 64, 75, 75]           --
│    └─Conv2d: 2-6                       [1, 128, 75, 75]          (73,856)
│    └─ReLU: 2-7                         [1, 128, 75, 75]          --
│    └─Conv2d: 2-8                       [1, 128, 75, 75]          (147,584)
│    └─ReLU: 2-9                         [1, 128, 75, 75]          --
│    └─MaxPool2d: 2-10                   [1, 128, 37, 37]          --
│    └─Conv2d: 2-11                      [1, 256, 37, 37]          (295,168)
│    └─ReLU: 2-12                        [1, 256, 37, 37]          --
│    └─Conv2d: 2-13                      [1, 256, 37, 37]          (590,080)
│    └─ReLU: 2-14                        [1, 256, 37, 37]          --
│    └─Conv2d: 2-15                      [1, 256, 37, 37]          (590,080)
│    └─ReLU: 2-16                        [1, 256, 37, 37]          --
│    └─MaxPool2d: 2-17                   [1, 256, 18, 18]          --
│    └─Conv2d: 2-18                      [1, 512, 18, 18]          (1,180,160)
│    └─ReLU: 2-19                        [1, 512, 18, 18]          --
│    └─Conv2d: 2-20                      [1, 512, 18, 18]          (2,359,808)
│    └─ReLU: 2-21                        [1, 512, 18, 18]          --
│    └─Conv2d: 2-22                      [1, 512, 18, 18]          (2,359,808)
│    └─ReLU: 2-23                        [1, 512, 18, 18]          --
│    └─MaxPool2d: 2-24                   [1, 512, 9, 9]            --
│    └─Conv2d: 2-25                      [1, 512, 9, 9]            (2,359,808)
│    └─ReLU: 2-26                        [1, 512, 9, 9]            --
│    └─Conv2d: 2-27                      [1, 512, 9, 9]            (2,359,808)
│    └─ReLU: 2-28                        [1, 512, 9, 9]            --
│    └─Conv2d: 2-29                      [1, 512, 9, 9]            (2,359,808)
│    └─ReLU: 2-30                        [1, 512, 9, 9]            --
│    └─MaxPool2d: 2-31                   [1, 512, 4, 4]            --
├─Flatten: 1-2                           [1, 8192]                 --
├─Sequential: 1-3                        [1, 1]                    --
│    └─Linear: 2-32                      [1, 256]                  2,097,408
│    └─ReLU: 2-33                        [1, 256]                  --
│    └─Linear: 2-34                      [1, 1]                    257
│    └─Sigmoid: 2-35                     [1, 1]                    --
==========================================================================================
Total params: 16,812,353
Trainable params: 2,097,665
Non-trainable params: 14,714,688
Total mult-adds (G): 6.62
==========================================================================================
Input size (MB): 0.27
Forward/backward pass size (MB): 47.95
Params size (MB): 67.25
Estimated Total Size (MB): 115.47
==========================================================================================

Fine-tuning#

Add your custom network on top of an already trained base network.
Freeze the base network, but unfreeze the last block of conv layers.

class FineTunedClassifier(nn.Module):
    def __init__(self, conv_base, unfreeze_from=10):
        super(FFEClassifier, self).__init__()
        self.conv_base = conv_base  # Pretrained feature extractor

        # Freeze all layers first
        for param in self.conv_base.parameters():
            param.requires_grad = False

        # Unfreeze deeper layers
        for layer in list(self.conv_base.children())[unfreeze_from:]:
            for param in layer.parameters():
                param.requires_grad = True

        self.flatten = nn.Flatten()  # Flatten feature maps
        self.fc = nn.Sequential(
            nn.Linear(512 * 4 * 4, 256),  # Adjust input size based on feature maps
            nn.ReLU(),
            nn.Linear(256, 1))

Visualized

==========================================================================================
Layer (type:depth-idx)                   Output Shape              Param #
==========================================================================================
FFEClassifier                            [1, 1]                    --
├─Sequential: 1-1                        [1, 512, 4, 4]            --
│    └─Conv2d: 2-1                       [1, 64, 150, 150]         (1,792)
│    └─ReLU: 2-2                         [1, 64, 150, 150]         --
│    └─Conv2d: 2-3                       [1, 64, 150, 150]         (36,928)
│    └─ReLU: 2-4                         [1, 64, 150, 150]         --
│    └─MaxPool2d: 2-5                    [1, 64, 75, 75]           --
│    └─Conv2d: 2-6                       [1, 128, 75, 75]          (73,856)
│    └─ReLU: 2-7                         [1, 128, 75, 75]          --
│    └─Conv2d: 2-8                       [1, 128, 75, 75]          (147,584)
│    └─ReLU: 2-9                         [1, 128, 75, 75]          --
│    └─MaxPool2d: 2-10                   [1, 128, 37, 37]          --
│    └─Conv2d: 2-11                      [1, 256, 37, 37]          295,168
│    └─ReLU: 2-12                        [1, 256, 37, 37]          --
│    └─Conv2d: 2-13                      [1, 256, 37, 37]          590,080
│    └─ReLU: 2-14                        [1, 256, 37, 37]          --
│    └─Conv2d: 2-15                      [1, 256, 37, 37]          590,080
│    └─ReLU: 2-16                        [1, 256, 37, 37]          --
│    └─MaxPool2d: 2-17                   [1, 256, 18, 18]          --
│    └─Conv2d: 2-18                      [1, 512, 18, 18]          1,180,160
│    └─ReLU: 2-19                        [1, 512, 18, 18]          --
│    └─Conv2d: 2-20                      [1, 512, 18, 18]          2,359,808
│    └─ReLU: 2-21                        [1, 512, 18, 18]          --
│    └─Conv2d: 2-22                      [1, 512, 18, 18]          2,359,808
│    └─ReLU: 2-23                        [1, 512, 18, 18]          --
│    └─MaxPool2d: 2-24                   [1, 512, 9, 9]            --
│    └─Conv2d: 2-25                      [1, 512, 9, 9]            2,359,808
│    └─ReLU: 2-26                        [1, 512, 9, 9]            --
│    └─Conv2d: 2-27                      [1, 512, 9, 9]            2,359,808
│    └─ReLU: 2-28                        [1, 512, 9, 9]            --
│    └─Conv2d: 2-29                      [1, 512, 9, 9]            2,359,808
│    └─ReLU: 2-30                        [1, 512, 9, 9]            --
│    └─MaxPool2d: 2-31                   [1, 512, 4, 4]            --
├─Flatten: 1-2                           [1, 8192]                 --
├─Sequential: 1-3                        [1, 1]                    --
│    └─Linear: 2-32                      [1, 256]                  2,097,408
│    └─ReLU: 2-33                        [1, 256]                  --
│    └─Linear: 2-34                      [1, 1]                    257
│    └─Sigmoid: 2-35                     [1, 1]                    --
==========================================================================================
Total params: 16,812,353
Trainable params: 16,552,193
Non-trainable params: 260,160
Total mult-adds (G): 6.62
==========================================================================================
Input size (MB): 0.27
Forward/backward pass size (MB): 47.95
Params size (MB): 67.25
Estimated Total Size (MB): 115.47
==========================================================================================

Take-aways#

Convnets are ideal for addressing image-related problems.
They learn a hierarchy of modular patterns and concepts to represent the visual world.
Representations are easy to inspect
Data augmentation helps fight overfitting
You can use a pretrained convnet to build better models via transfer learning

Lecture 7: Convolutional Neural Networks

Contents

Lecture 7: Convolutional Neural Networks#

Overview#

Convolutions#

Demonstration on Fashion-MNIST#

Image convolution in practice#

Filter banks#

Convolutional neural nets#

Convolutional Neural Networks (ConvNets)#

Convolutional layers: Feature maps#

Border effects (zero padding)#

Undersampling (striding)#

Max-pooling#

Receptive field#

Dilated convolutions#

Convolutional nets in practice#

Example with PyTorch#

Global Average Pooling (GAP)#

Cats vs Dogs#

Data loader#

Model#

Training#

Solving overfitting in CNNs#

Data augmentation#

Real-world CNNs#

VGG16#

Inceptionv3#

Factorized convolutions#

ResNet50#

Interpreting the model#

Spatial hierarchies#

Visualizing the learned filters#

We need to go deeper. Bigger networks, more data!#

Visualizing class activation#

Implementing gradCAM#

Transfer learning#

Using pre-trained networks: 3 ways#

Fast feature extraction (without data augmentation)#

Fast feature extraction (with data augmentation)#

Fine-tuning#

Take-aways#
